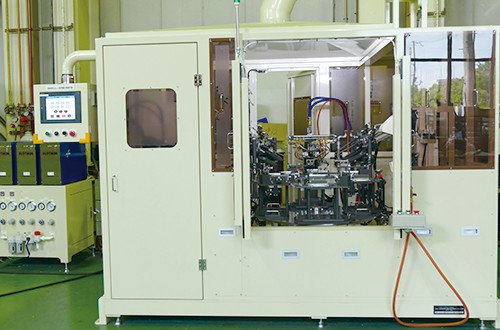

DAISHIN Automatic Brazing Machine Ada

Model T

Indexing Table Type (2-16 station capacity)

Ringkasan

Kenapa Model T

  • Indexing Table Type (2-16 station capacity)
  • CKD Absodex table rotation unit
  • Large HMI Touch Panel
  • Flotron Intelligent Gas Controller (for full control of combustion gas mix ratio and delivery)
  • Fully customizable fixture and burner design
  • Options include:
  • Multistage heating (multiple flame settings, as well as heating positions, within each cycle)
  • Multiple heating stations via index table (preheating and brazing)
  • Wire Feeding System
  • Vapour Flux System (vaporized flux in flame)
  • Paste flux application system
  • Optimum Heating System (fixture temperature variation compensation tool)
  • Automatic burner ignition
  • Post-brazing air and/or water cooling of parts
  • Table indexes by cycle time
  • Operator loads/unloads parts at the operator station as other fixtures travel to each station on the index table
  • Excellent design for high volume production
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja

Spesifikasi Teknis

1. Gas control is Flotron (flame has 3 modes: ignition flame, weak flame, strong flame)
2. Burner in/out mechanism and burner swing mechanism
3. Wire in/out mechanism and feed mechanism
4. Wire feed amount and feed speed setting mechanism
5. Automatic ignition mechanism
6. Absodex table (manufactured by CKD)
7. Touch panel (large digital display)
