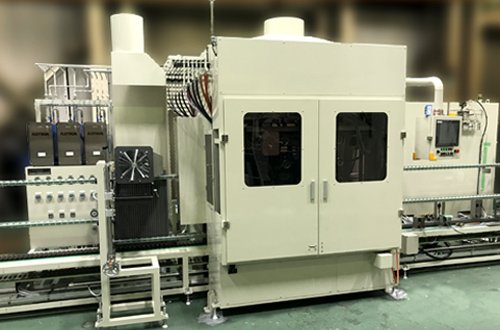

DAISHIN Automatic Brazing Machine Ada

Model C

Conveyor type brazing machine

Ringkasan

Kenapa Model C

  • Conveyor type brazing machine
  • Used for return brazing to hear exchanger hairpins
  • Bottom support slat, chain drive top tube sheet support, bottom support, palletized designs, etc. available
  • Large HMI Touch Panel
  • Flotron Intelligent Gas Controller (for full control of combustion gas mix ration and delivery)
  • Fully customizable fixture and burner design
  • Options include:
  • Automated burner position adjustment
  • Automated burner angular adjustment
  • Vapour Flux System (vaporized flux in flame)
  • Automatic burner ignition
  • Post-brazing air cooling of parts
  • Parts are loaded either manually or automatically on the conveyor and pass through the machine for brazing. All braze settings are customizable and stored in the PLC, accessible via the HMI for quick and easy changeover (burner position, conveyor speed, combustion gas mix ratio, et al.)
  • Parts are unloaded either manually or automatically at the opposite end of the machine
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja

Spesifikasi Teknis

1. Gas control is Flotron (flame has 3 modes: ignition flame, weak flame, strong flame)
2. Burner unit has up/down and front/back angle adjustment mechanism
3. Nitrogen sealed/air blow unit
4. Conveyor speed has variable function
5. Automatic ignition mechanism
6. Touch panel (large digital display)
