DAISHIN Automatic Brazing Machine Ada

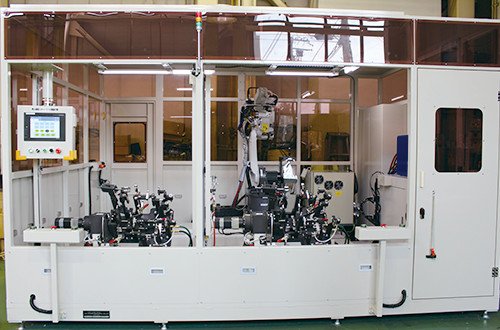

Model R
Robotic brazing machine
Ringkasan
Kenapa Model R
- Robotic brazing machine
- Robot carries burner manifold (wire feeder and Vapour flux nozzles where applicable)
- Highly versatile system for brazing multiple joints on a single work piece, or single joints on a work piece with complex or difficult braze joint orientation
- Fixture positioning can also be automated to work in conjunction with robot positioning
- Large HMI Touch Panel
- Flotron Intelligent Gas Controller (for full control of combustion gas mix ratio and delivery)
- Fully customizable fixture and burner design
- Options include:
- Automated burner position adjustment
- Vapour Flux System (vaporized flux in flame)
- Paste fluxing system
- Wire feeding system
- Automatic burner ignition
- Post-brazing air and cooling of parts
- Parts are loaded in the fixture. The robot brazes the part, and the part is removed from the fixture at the end of the cycle
Spesifikasi Teknis
1. Gas control is Flotron (flame has 3 modes: ignition flame, weak flame, strong flame)
2. Wire extension/retraction mechanism and supply mechanism
3. Automatic ignition mechanism
4. Misfire detection mechanism
5. Touch panel (large digital display)
