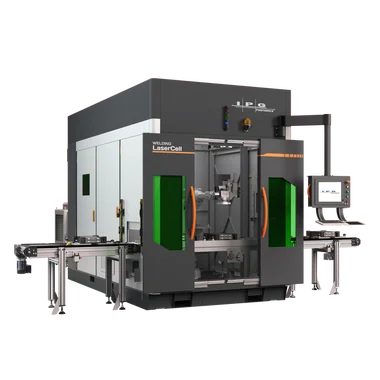

Welding LaserCell
The Welding LaserCell is configurable with virtually all IPG lasers and beam delivery heads
Ringkasan
Kenapa Welding LaserCell
The Welding LaserCell is configurable with virtually all IPG lasers and beam delivery heads. IPG will provide
guidance on the best equipment selection for specific applications and material-thickness combinations based
on proven welding implementations.
Katalog Welding LaserCellPDF resmi dari IPG PHOTONICS
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Item | Description |
| Laser Source | 2 – 6 kW IPG industrial CW fiber lasers |
| Beam Delivery | IPG D30 or High Power Scanning Welding Heads |
| Dimensions (L × W × H), mm | 4200 × 2200 × 3000 |
| System Control | Industrial PLC controller with HMI using IPG Core |
| Safety | Class 1 |
| Robot Configuration | Industrial 6-Axis robot with Motion Package and Safety Position Check |
| Reach/Repeatability, mm | ~1800 ± 0.025 |
| Item | Description |
| Laser Source (Options) | - Single and Multi-mode 2/4 kW Adjustable Mode Beam lasers with independent core & ring power control - 1–2 kW Single-mode and 4–6 kW Multi-mode Rack Mounted or Cabinet Lasers |
| Real-Time Weld Measurement | Integrated real-time inline coherent imaging (ICI) weld monitoring system measuring weld penetration depth, transverse profile |
| Vision | Integrated vision imaging and correction system providing typical weld-to-part accuracy of ±50 µm |
| Part Loading Options | Manual part loading via system front doors, optional conveyor pass-through or servo turntable with automated entry/exit doors |
| Fume Extraction | Integrated fume extraction contained within the laser cell |
| Power Meter | Integrated power meter for automatic, programmable measurement of laser power |
