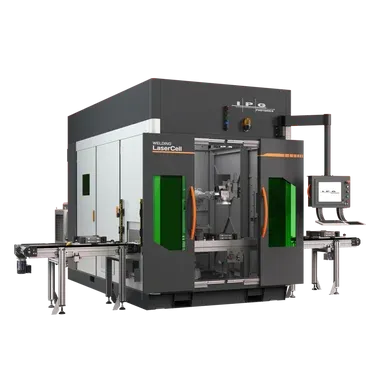

SYS-3000-EV Laser Processing System
The SYS-3000-EV is a turnkey laser welding systemdesigned for R&D, process development, and smallformat production for laser welding battery andenergy storage system appl...
Kenapa SYS-3000-EV Laser Proces...
The SYS-3000-EV is a turnkey laser welding system
designed for R&D, process development, and small
format production for laser welding battery and
energy storage system applications.Featuring a
compact footprint with a generous work envelope,
this system allows for process development using
the same components as those used on a full scale
production line.
Spesifikasi Teknis
Specification
| System | Specification | |||
| Laser Sources | Internal: Rack-Mounted Fiber Laser up to 6 kW External: Single-Mode Adjustable Mode Beam (AMB) Fiber Laser up to 8 kW | |||
| Beam Delivery | IPG Mid-Power or High-Power Scanner IPG D30/D50 Welding Head (with or without Wobble) | |||
| Part Loading | Manual or Conveyor Loading, Automatic Doors standard | |||
| Motion Control | Up to four axes coordinated motion | |||
| Motion Stage | Value | |||
| Travel (X × Y × Z) mm | 600 × 400 × 300 | |||
| Max Speed (mm/sec) | 1000 | |||
| Accuracy (µm) | 500mm | |||
| Bi-Directional Repeatability (µm) | #ERROR! | |||
| Straightness and Flatness (µm) | #ERROR! | |||
| Orthogonality (µm) | 25 | |||
| Calibration | Laser Spot & Vision Calibration Suite (non-fixed) | |||
| General | Specification | |||
| Dimensions (W × H × D), mm | 1300 × 1550 × 2250 Standard 1300 × 1550 × 2500 Long Focal Length Option | |||
| Weight, kg | 2000 | |||
| Process Gas | 1 Process Gas Standard with Manual Flow Control. Up to 3 Gases Optional | |||
| Illumination | 2 Channel Lighting Controller | |||
| Controls | Industrial Computer with Touch Screen Monitor Running IPG Core Software (Windows-Based Operating Software) | |||
| Option | Option | |||
| Process Measurement | LDD Real-Time Direct Weld Measurement | |||
| Custom Tooling | Custom Clamping Tooling for Busbar-to-Cell Welding & Anode/Cathode Cap-to-Can Welding & Battery Enclosures | |||
| Factory Integration | Conveyor Pass-Through with SMEMA/MES Interface, Robotic Loading Automation Interface | |||
| Motion Axes | A- and B- Axes Optional | |||
| Vision | Computer-controlled Illumination Camera/Vision System for Automatic Alignment and Calibration | |||
| Power Measurement | On-Target Power Meter | |||
| Gas Flow Control | Electronic Mass Flow Control | |||
| Identification | Barcode or RFID | |||
| Fume Extraction | Fume Extractor Unit | |||
