YOSHIKAWA Pneumatic Type Ada

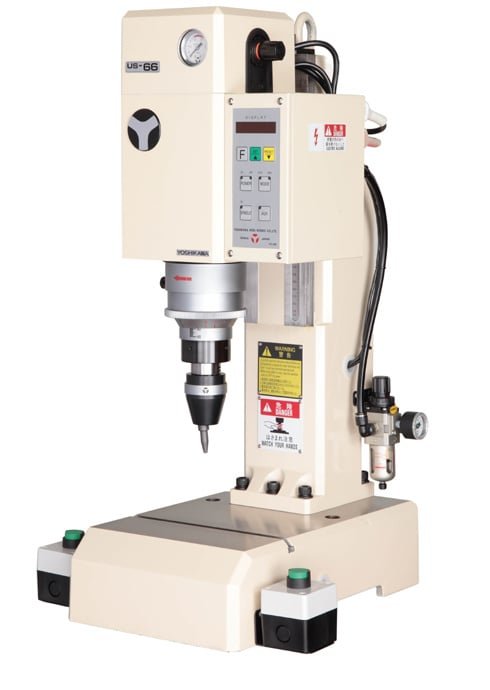

US-66

Compared to general hydraulic types, the machine body is smaller and is suitable for small-sized riveting work.This riveting machine can be installed in a small space and...

Katalog
Ringkasan

Kenapa US-66

Compared to general hydraulic types, the machine body is smaller and is suitable for small-sized riveting work.
This riveting machine can be installed in a small space and is easy to operate and maintain.

Katalog US-66PDF resmi dari YOSHIKAWA Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja

Spesifikasi Teknis

Specification

Riveting Capacityφ0.5～φ5mm Mild steelAir pressure0.412MPa (4.2kgf/cm2）
Maximum pressure5kN (515kgf)Power Source3φ AC200V 50/60Hz 280VA
Cylinder Stroke5 ~ 40mmInstallation floor sizeW270xD450mm
Working Time Timer0.2～9.99secHeight837 mm
Spindle motor120w AC200V 50/60Hzweight130kg
