FRE-05
FRE-05

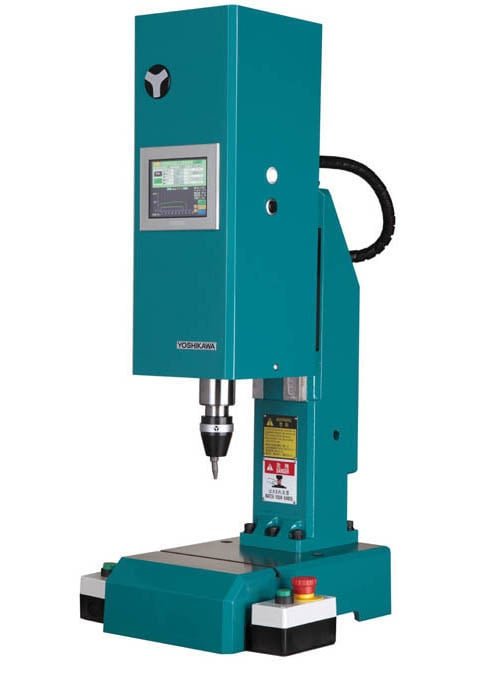

YOSHIKAWA Electric Servo Type Ada

FRE-05

This is an electric servo type that does not use air or hydraulic pressure as a power source

Katalog
Ringkasan

Kenapa FRE-05

This is an electric servo type that does not use air or hydraulic pressure as a power source. It is a new type of riveting machine developed with an eye on the future.
This machine is also suitable for working on extremely small precision parts and is environmentally friendly.

Katalog FRE-05PDF resmi dari YOSHIKAWA Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja

Spesifikasi Teknis

Specification

Riveting Capacityφ0.5～φ5mm Mild steelSpindle motor400w AC200V
Maximum pressure5kN (510kgf)Power Source3φ AC200V 50/60Hz 3.5kVA
Cylinder StrokeMAX 60mmInstallation floor sizeW270xD450mm
Working Time Timer0～9.9secHeight1,063 mm
Servo motor for crimping750w AC200Vweight140kg (main unit), 60kg (stand, control panel)
