Payload
6 kg
Jumlah sendi
6
Repeatability
±0.08 mm
Berat
145 kg
OTC DAIHEN Arc Welding Robots Ada

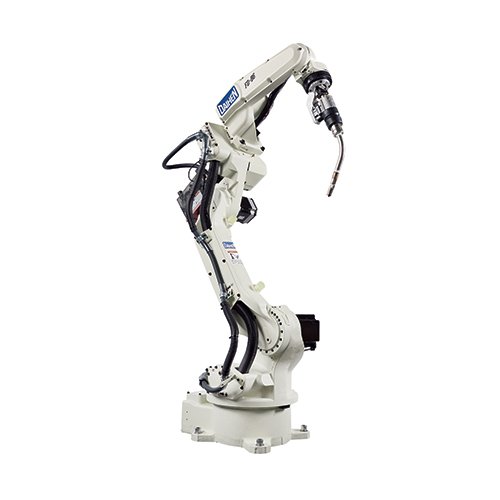

FD-B6
Simple & Slim Design Ideal for Arc Welding Challenging the Highest Speeds across the Industry
Ringkasan
Kenapa FD-B6
Simple & Slim Design Ideal for Arc Welding Challenging the Highest Speeds across the Industry. Achievement of motion performance that excels competitors for the improvement of productivity and welding performance
- Increase of the maximum speed by up to 40% reducing the tact time of robot movement!
- Smoother movement for Arc start point improving the welding performance of the arc starting point!
- Decreased number of maintenance parts by motor standardization!
Jangkauan gerak
Gerak tiap sendi robot.
Rentang gerak (−270° … +270°)
Kecepatan maks. (°/s)
J1Rotation
-170°
+170°
240
J2Lower Arm
-155°
+90°
240
J3Upper Arm
-170°
+245°
230
J4Swing
-155°
+155°
430
J5Bending
-45°
+225°
430
J6Twist
-205°
+205°
630
Katalog FD-B6PDF resmi dari OTC DAIHEN
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Coba di Robot LabGerakkan robot 3D dan coba rancang area las Anda
Spesifikasi Teknis
| Parameter | Value |
| Structure | Vertical articulated type |
| Number of Axes | 6 |
| Max. Payload Capacity | 6 kg |
| Positional Repeatability | ±0.08mm (Note 1) |
| Drive System | AC servomotor |
| Drive Capacity | 3132 W |
| Position Feedback | Absolute encoder |
| Working Range | |
| J1 (Rotation) | ±170° (±50°) (Note 2) |
| J2 (Lower Arm) | −155° to +90° (Note 3) |
| J3 (Upper Arm) | −170° to +245° (Note 4) |
| J4 (Swing) | ±155° (±170°) (Note 5) |
| J5 (Bending) | −45° to +225° (Note 6) |
| J6 (Twist) | ±205° (±360°) (Notes 5 and 6) |
| Maximum Speed | |
| J1 (Rotation) | 4.19 rad/s [240°/s] (3.32 rad/s [190°/s]) |
| J2 (Lower Arm) | 4.19 rad/s [240°/s] |
| J3 (Upper Arm) | 4.01 rad/s [230°/s] |
| J4 (Swing) | 7.50 rad/s [430°/s] |
| J5 (Bending) | 7.50 rad/s [430°/s] |
| J6 (Twist) | 11.00 rad/s [630°/s] |
| Wrist Allowable Load | |
| J4 (Swing) | 10.5 N·m |
| J5 (Bending) | 10.5 N·m |
| J6 (Twist) | 5.9 N·m |
| Wrist Allowable Moment of Inertia | |
| J4 (Swing) | 0.28 kg·m² |
| J5 (Bending) | 0.28 kg·m² |
| J6 (Twist) | 0.06 kg·m² |
| Arm Cross-sectional Area | 3.59 m² × 340° |
| Ambient Conditions | Temp: 0 to 45°C, Hmd: 20 to 80%RH (No Condensation) |
| Mass (weight) | 145 kg |
| Upper Arm Payload Capacity | 10 kg (Note 7) |
| Installation Type | Floor, wall, or ceiling |
| Paint Color | White (Munsell notation 10GY 9/1) |
