Precision Laser Workstations (1500)
IPG PHOTONICS Laser Systems by Application Ada

Precision Laser Workstations (1500)

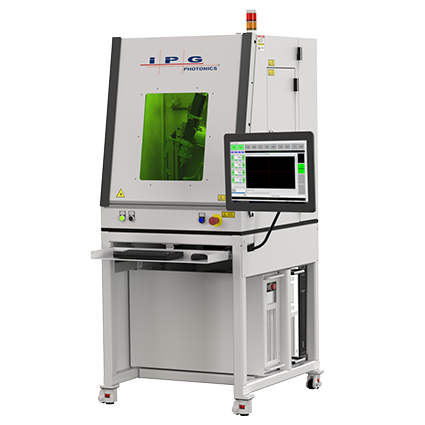

The 1500 is a Class 1 fiber laser processing systemcapable of performing a variety of applicationsincluding welding, cutting, drilling and more.The 1500 has a compact des...

Katalog
Ringkasan

Kenapa Precision Laser Workstat...

The 1500 is a Class 1 fiber laser processing system
capable of performing a variety of applications
including welding, cutting, drilling and more.
The 1500 has a compact design, configured to
order and built with a comprehensive solution for
your specific needs, allowing for lower costs and
faster delivery than a fully customized system.
With flexible configuration options the system is
easily integrated onto the manufacturing floor for
prototyping as well as full-scale production. The
1500 can be supplied turnkey with processing
recipes developed by our specialists prior to
tool delivery, further accelerating tool move-in,
qualification, and time to production.

Spesifikasi Teknis

Specification

SystemSpecification
Laser Sources, W

Continuous Wave: 300, 500

QCW: 150/1500 & 300/3000

Beam DeliveryIPG Welding Head, with Optional Wobble Welding Module
Part LoadingManual loading with automatic door
Motion ControlThree Axis, upgradable to four axes total
Process GasSingle programmable gas standard, multiple gasses optional

MotionSpecification
Travel (X × Y × Z) mm200 × 200 × 150
Max Speed (mm/sec)300
Stage TypePrecision Machined Ballscrew Stage
ToolingThreaded Aluminum Base Plate

GeneralSpecification
Dimensions (W × D × H, mm)765 × 890 × 1780
Weight, kg800
Process GasWelding: Manually Adjustable Pressure Regulator & Computer Controlled Solenoid Valve and Flow Switch for One Process Gas
Illumination & CameraProgrammable Lighting Controller with coaxial camera
Controls / Interface

IPG Core or HMI-2200 User Interface

Industrial PC Windows 10 OS

22” LCD Touchscreen, Industrial UPS

SafetyCDRH Class I Laser System (Complies with 21 CFR Chapter 1, Subchapter J)

OptionsSpecification
Process MonitoringLDD Real Time Direct Weld Measurement
Motion AxesA-Axis
VisionCamera / Vision Systems
IlluminationComputer Controlled Illumination
Power Measurements

On-Target Power Meter

Pulse Energy Detector

Gas HandlingProgrammable Gas Control
Data Input

Remote Jog Box

Barcode Scanner

RFID Reader

Beam Delivery OptionsAutomated Dual Collimator, Multiple Lens configuration
Remote I/ORemote I/O
21CFR Part 11 Software21CFR Part 11 Software
Factory IntegrationFactory MES Software
