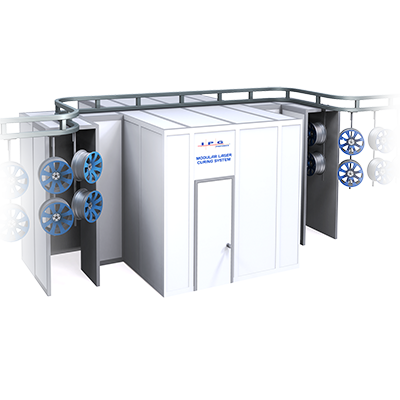

Modular Laser Curing System
Capable of simple integration into existing curing lines, the Modular Laser Curing System brings the power of laserheating to industrial powder coat curing operations
Kenapa Modular Laser Curing Sys...
Capable of simple integration into existing curing lines, the Modular Laser Curing System brings the power of laser
heating to industrial powder coat curing operations. A flexible design combined with the speed and efficiency
of laser curing empowers manufacturers to dramatically reduce curing costs while maximizing throughput and
minimizing environmental impact.
Spesifikasi Teknis
Specification
| Category | Specification |
| System Characteristics | |
| Modular Cell Dimensions | Length: Min. 2.4 m, Max. Unlimited (increments of 1.2 m) Height: up to 5 m Depth: Customer part dependent |
| Laser Safety | Class I Laser Enclosure Laser Safe “Light Labyrinth” or Manual/Automatic Doors |
| Enclosure Walls | Heat-resistant aluminum panels |
| Conveyor Compatibility | Types: Overhead rail & all common conveyors Style: Continuous & Stop-and-Start |
| Fume Extraction | Ready for integration with facility fume extraction |
| Laser & Beam Delivery | |
| Laser Source | IPG DLS or DLS-ECO Series (4.5 kW – 100 kW) |
| Beam Delivery Optics | IPG DLS Wide Area Projection Head |
| Heating Area (per laser source) | Minimum: 200 × 200 mm Maximum: 1800 × 4000 mm |
| Projection Head Mounting Options | Fixed Manually Adjustable (XYZ) Pneumatic (XYZ) Servo (XYZ) Robotic (6-axis) |
| Cooling | IPG Laser Chiller |
| Control & Monitoring | |
| Software | IPG DLS/HMI Controller Software |
| Operator Interface | Monitor with Keyboard & Mouse |
| Temperature Control Options | Infrared Temperature Sensor FLIR Thermal Camera Precision Pyrometer Sensor |
| Internal Monitoring | Imaging Camera with CCTV |
| Safety | Optional Human Detection Safety Radar |
| General Characteristics | |
| Power | 400–480 VAC, 68A, 3PH, 50/60 Hz |
| Operating Temperature | 0 °C to +43 °C |
| Relative Humidity | <75%, no dew or frost |
| Air Supply | Filtered moisture-free compressed air, 550 kPa minimum |
