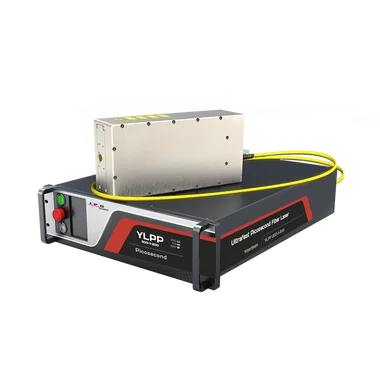

YLPP/YLPF-R Series UP to 100 W
YLPP/YLPF-R Series UP to 100 W
IPG PHOTONICS Ultrafast Pulsed Fiber Lasers Ada

YLPP/YLPF-R Series UP to 100 W

YLPF/ YLPP hybrid-fiber ultrafast lasers providehigh pulse energy and high peak power withscalable average output power up to 100 W andpulse durations in the range from 6...

Katalog
Ringkasan

Kenapa YLPP/YLPF-R Series UP to...

YLPF/ YLPP hybrid-fiber ultrafast lasers provide
high pulse energy and high peak power with
scalable average output power up to 100 W and
pulse durations in the range from 600 fs to 3 ps in
50-5500 kHz repetition rate range. Our fiber design
is “beyond state-of-the-art”, enabling an incredibly
compact laser that is inherently more power
efficient, reliable and robust than conventional
bulk-rod or disk based DPSS lasers, but priced
significantly lower than the legacy products.

Spesifikasi Teknis

Specification

ParameterYLPF-100-750-100YLPP-100-1-100YLPF-200-750-50YLPP-200-1-50
Wavelength, nm1030
Max. Average Power, W10050
Pulse Energy, μJ100200
Pulse Duration, ps0.7510.751
Repetition Rate, kHz50-5500
Beam Quality, M²<1.4 (1.2 typ.)

ParameterSpecification
Control Unit Dimensions (W×D×H), mm448×580×133
Optical Head Dimensions (W×D×H), mm82×271×124
CoolingWater
Supply Voltage, VACSingle-phase 50-60 Hz 100-240
Optical Head Weight, kg5.5
Power Consumption, W<1200
