IPG PHOTONICS Industrial CW Fiber Lasers Ada

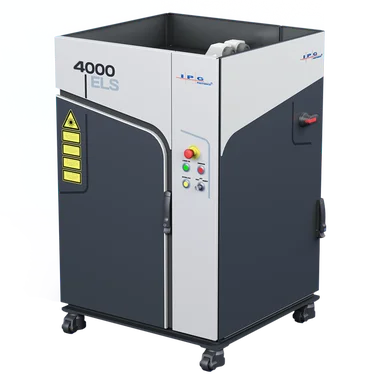

Erbium Fiber Laser Cabinets(ELS Series)
IPG’s new high power CW erbium fiber laser has acentral wavelength of 1567 nm and an output power ofup to 2000 W
Ringkasan
Kenapa Erbium Fiber Laser Cabin...
IPG’s new high power CW erbium fiber laser has a
central wavelength of 1567 nm and an output power of
up to 2000 W. Featuring a power stability of ±2% and
a linewidth of <2 nm. Available for research, materials
processing and low loss power transmission applications,
IPG’s high power erbium lasers open up new exciting
areas of applications development.
Katalog Erbium Fiber Laser Cabinets(...PDF resmi dari IPG PHOTONICS
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Optical Characteristics | Specification | |
| Wavelength | 1567 nm | |
| Mode of Operation | CW/Modulated | |
| Modulation Frequency | <1 kHz | |
| Max. Average Power | 2000 W | |
| Power Tunability | 10-100% | |
| Power Stability | ±2% * | |
| Beam Parameter Product | <4.5 mm×mrad @ 100 μm feeding fiber | |
| General Characteristics | Specification | |
| Cabinet Dimensions (W×D×H) | 856×806×1206 mm | |
| Weight | 350 kg | |
| Supply Voltage | 400-480 VAC 3-phase, 50-60 Hz | |
| Wall-plug Efficiency | ≥18% | |
