ATLAS COPCO Fixtured Assembly Solutions Ada

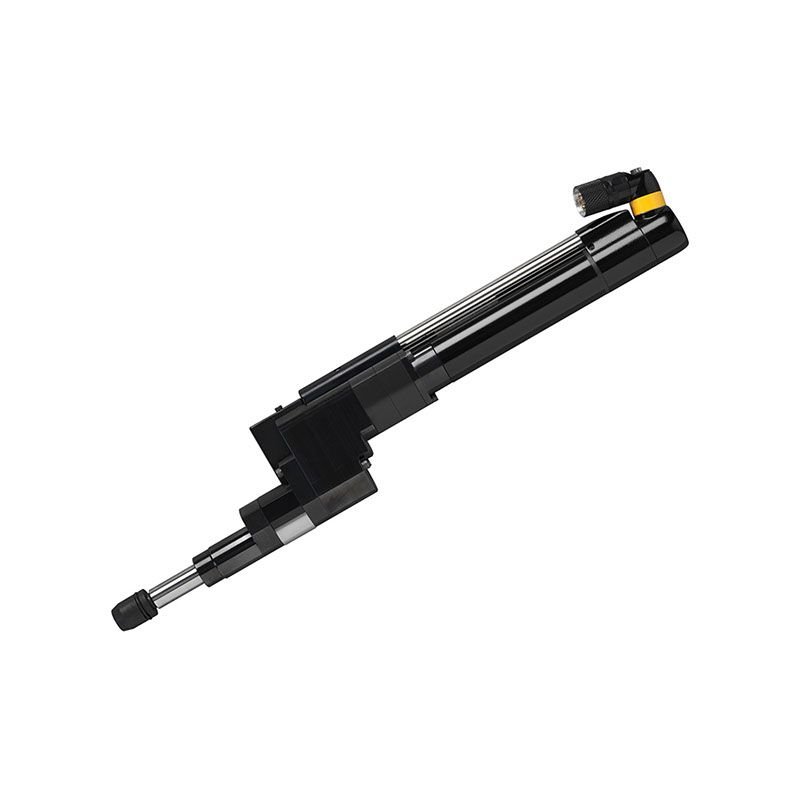

QST95-1750COT-T50-L155-H38
The Fixtured Nutrunner QST is a true state-of-the-art product offering high reliability, accuracy and capability
Ringkasan
Kenapa QST95-1750COT-T50-L155-H...
The Fixtured Nutrunner QST is a true state-of-the-art product offering high reliability, accuracy and capability. Available in several different models, the tool is designed for being durable, reliable and productive. The tightening controller automatically increases the bus voltage for the larger size nutrunner QST80 and 90, without the need for a different controller or servo, giving unique speed capabilities for high-torque applications, easy to integrate both fixtures and robots.
Katalog QST95-1750COT-T50-L155-H38PDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Specification | Value |
| Torque range max | 1291 ft-lb |
| Torque range min | 258 ft-lb |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| EU Standard | EN 61800-3(2004) +A1(2012), EN 61010-1 (2010) |
| KC certified | Yes |
| KC ID | R-REI-50A-QST50 |
| UK Regulations | S.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| UK Standard | EN 61800-3(2004) +A1(2012), EN 61010-1 (2010) |
| WEEE | 4 - Large equipment >50cm |
| Gear ratio | 98.21 |
| Min C-C | 73 |
| SCIP | 179c54af-ee6b-4817-a831-9e7ca6a94970 |
| Sound pressure | <75 dB(A) |
| Sound standard | ISO15744 |
| Speed | 60 r/min |
| A | 155 mm |
| E | 796 mm |
| Socket holder size | 1 1/2 in |
| Travel | 50 mm |
| Weight | 94.8 lb |
