ATLAS COPCO Pneumatic Assembly Tools Ada

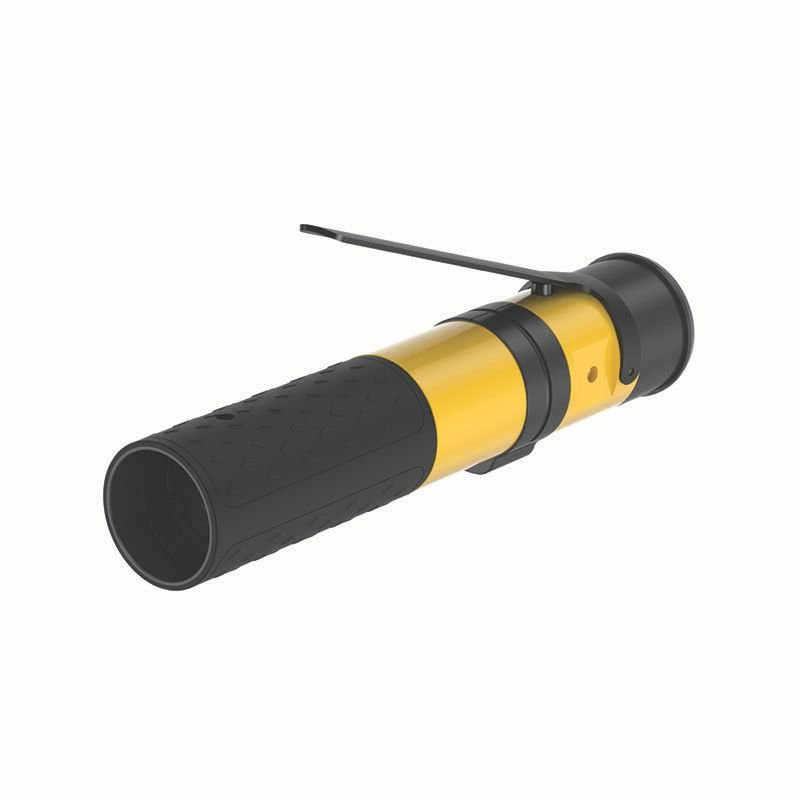

LUD22 SR16
The Straight Direct Drive Screwdriver LUD is suitable for applications with self-drilling and wood screws
Ringkasan
Kenapa LUD22 SR16
The Straight Direct Drive Screwdriver LUD is suitable for applications with self-drilling and wood screws. The LUDs are direct drive screwdrivers that stall when final torque is reached. The torque level is adjusted by regulating the air pressure.
Katalog LUD22 SR16PDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Specification | Value |
| Air inlet thread | 1/4 in |
| CS distance | 18.5 mm |
| Length | 195 mm |
| Output size | Special design |
| Recommended hose size | 6 mm |
| Weight | 1.55 lb |
| Model type | Straight |
| Output type | Special design |
| SCIP | 47e16caf-a521-4999-9f5a-5ea995d62d14 |
| Shut-off | Direct drive |
| Start trigger | Trigger lever |
| Sound pressure | 80 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Free speed | 420 r/min |
| Air consumption at free speed | 17 cfm |
| Max working pressure | 100 psig |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6 |
| Torque range max | 16.23 ft-lb |
| Torque range min | 5.9 ft-lb |
| Torque range soft joint max | 194 in-lb |
| Torque range soft joint min | 70 in-lb |
