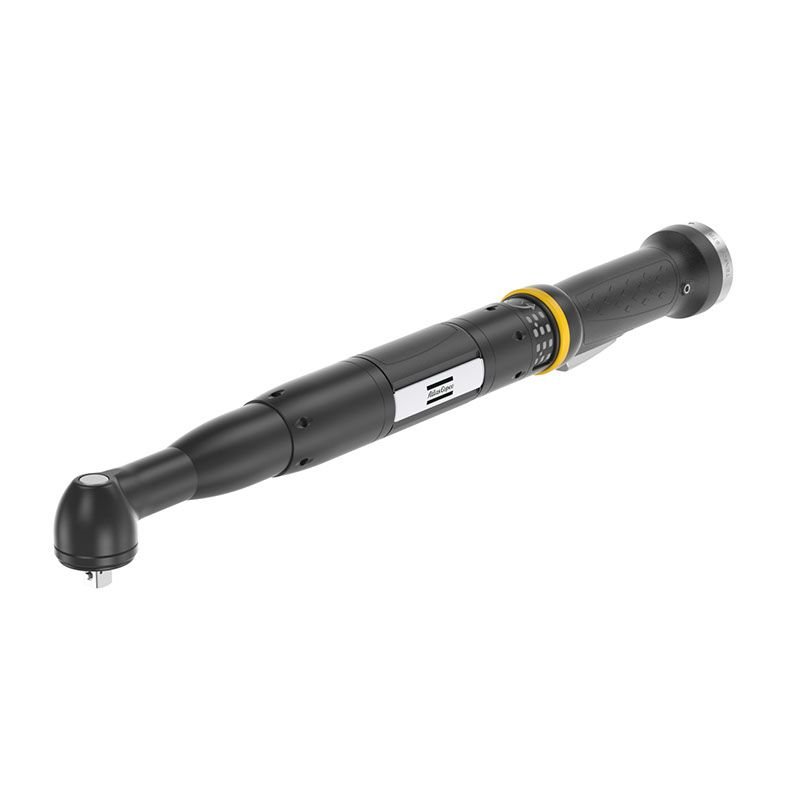

ETV STR61-50-10-SH
Take productivity to new levels with the revolutionary Angle Cable Nutrunner Tensor STR
Ringkasan
Kenapa ETV STR61-50-10-SH
Take productivity to new levels with the revolutionary Angle Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.
Katalog ETV STR61-50-10-SHPDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Specification | Value |
| Certifications, Standards & Directives | |
| CQC Certified | No |
| EU Legislation | 2006/42/EC (MD); 2011/65/EU (RoHS); 2014/30/EU (EMC); 2015/863/EU (RoHS amendment) |
| EU Standard | EN 61000-6-2:2019; EN 61000-6-4:2019; EN 62841-1:2015+AC:2015; EN 62841-2-2:2014+AC:2015; EN ISO 12100:2010 |
| KC Certified | No |
| KC ID | N/A |
| UK Regulations | S.I. 2008/1597; S.I. 2012/3032; S.I. 2016/1091 |
| UK Standard | BS EN 62841-1:2015; BS EN 62841-2-2:2014; BS EN IEC 61000-6-2:2019; BS EN IEC 61000-6-4:2019; BS EN ISO 12100:2010 |
| WEEE | 4 – Large equipment >50 cm |
| Noise & Vibrations | |
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Standard | ISO28927-2 |
| Vibration Value | <2.5 m/s² |
| Dimension & Weight | |
| CS Distance | 18 mm |
| Length | 590.5 mm |
| Output Size | 3/8" |
| Weight | 4 lb |
| Design & Functions | |
| Model Type | Angle |
| Output Type | Square, Male |
| Shut-off System | Transducer |
| Tool Family | STR |
| Speed | |
| Speed Range Max | 735 r/min |
| Power | |
| Motor Power | 1500 W |
| Motor Voltage Type | 3 a.c. |
| Motor Voltage | 200 V |
| Torque | |
| Torque Range Max | 40 ft-lb |
| Torque Range Min | 7 ft-lb |
| Torque Scatter 3s | ≤ 5 % |
