Berat
2.73 lb (1.24 kg)
Kapasitas
0-14 mm (0-0.55")
ATLAS COPCO Pneumatic Assembly Tools Ada

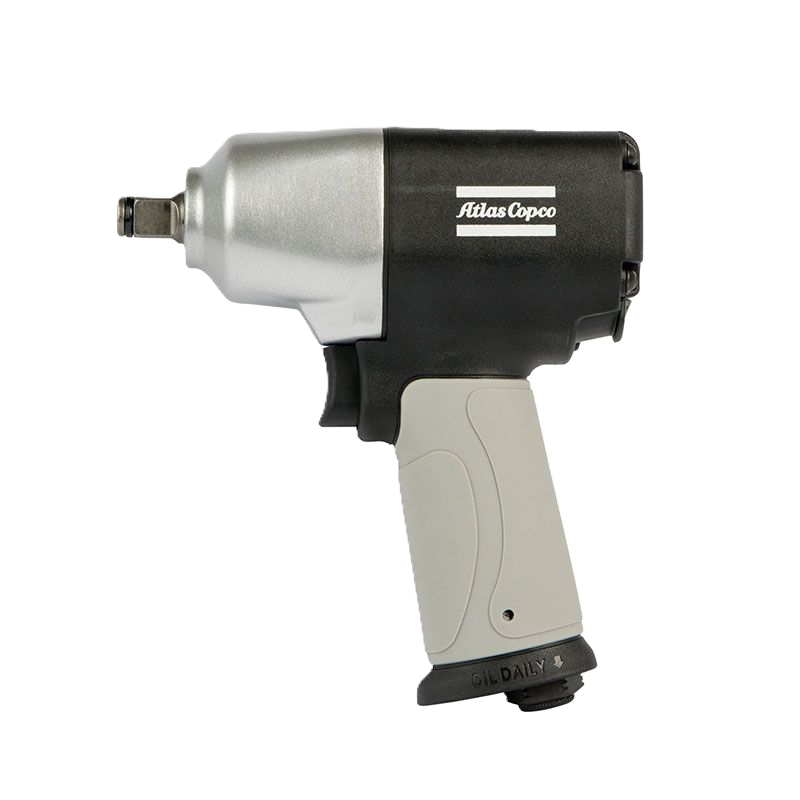

W2911
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator
Ringkasan
Kenapa W2911
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Katalog W2911PDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Category | Specification |
| Torque | |
| Max Torque | 369 ft-lb (500 Nm) |
| Torque Range | 111-295 ft-lb (150-400 Nm) |
| Speed | |
| Free Speed | 7,300 RPM |
| Air Specifications | |
| Air Consumption | 17 l/s (0.6 ft³/s) |
| Max Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Design & Functions | |
| Professional Grade (PRO) | Yes |
| Clutch Type | Twin Hammer |
| Noise & Vibrations | |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Vibration Level | 5.1 m/s² (16.7 ft/s²) |
| Dimensions & Weight | |
| Air Inlet | 1/4" NPT |
| Bolt Capacity | 0-14 mm (0-0.55") |
| Length | 160 mm (6.3") |
| Recommended Hose | 10 mm (3/8") |
| Drive Size | 1/2" square drive |
| Weight | 2.73 lb (1.24 kg) |
