Berat
5.95 lb (2.7 kg)
Kapasitas
0-16 mm (0-0.63")
ATLAS COPCO Pneumatic Assembly Tools Ada

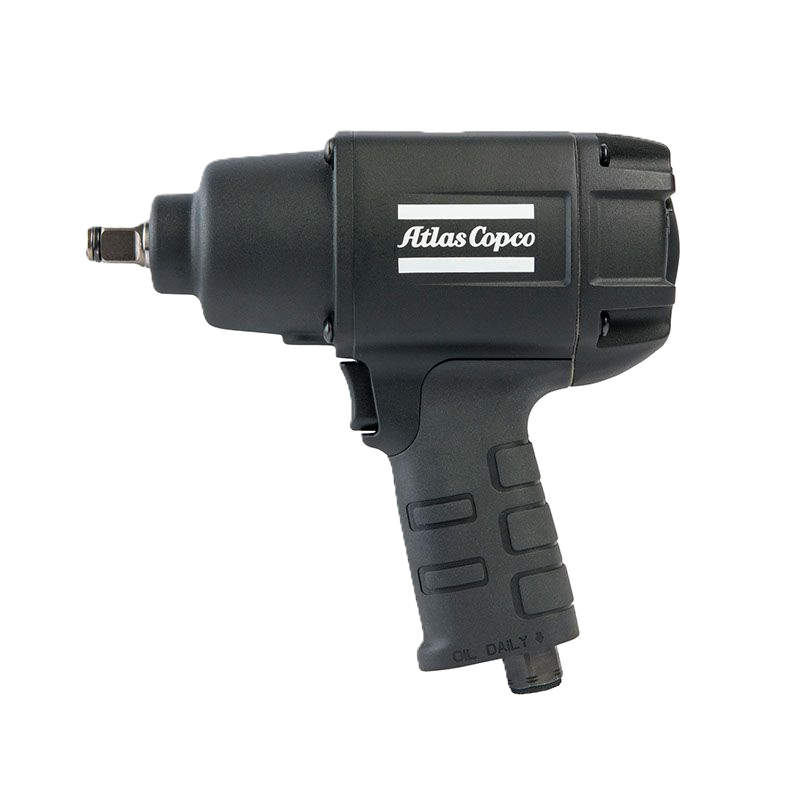

W2415
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator
Ringkasan
Kenapa W2415
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Katalog W2415PDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Category | Specification |
| Torque | |
| Max Torque | 553 ft-lb (750 Nm) |
| Torque Range | 111-479 ft-lb (150-650 Nm) |
| Speed | |
| Free Speed | 7,700 RPM |
| Air Specifications | |
| Air Consumption | 20 l/s (0.71 ft³/s) |
| Max Working Pressure | 90 psi (6.2 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Design & Functions | |
| Professional Grade (PRO) | Yes |
| Clutch Type | Single Hammer |
| Noise & Vibrations | |
| Sound Power | 101 dB(A) |
| Sound Pressure | 89.7 dB(A) |
| Vibration Level | 3.79 m/s² (12.4 ft/s²) |
| Dimensions & Weight | |
| Air Inlet | 1/4" NPT |
| Bolt Capacity | 0-16 mm (0-0.63") |
| Length | 206 mm (8.11") |
| Recommended Hose | 10 mm (3/8") |
| Drive Size | 1/2" square drive |
| Weight | 5.95 lb (2.7 kg) |
