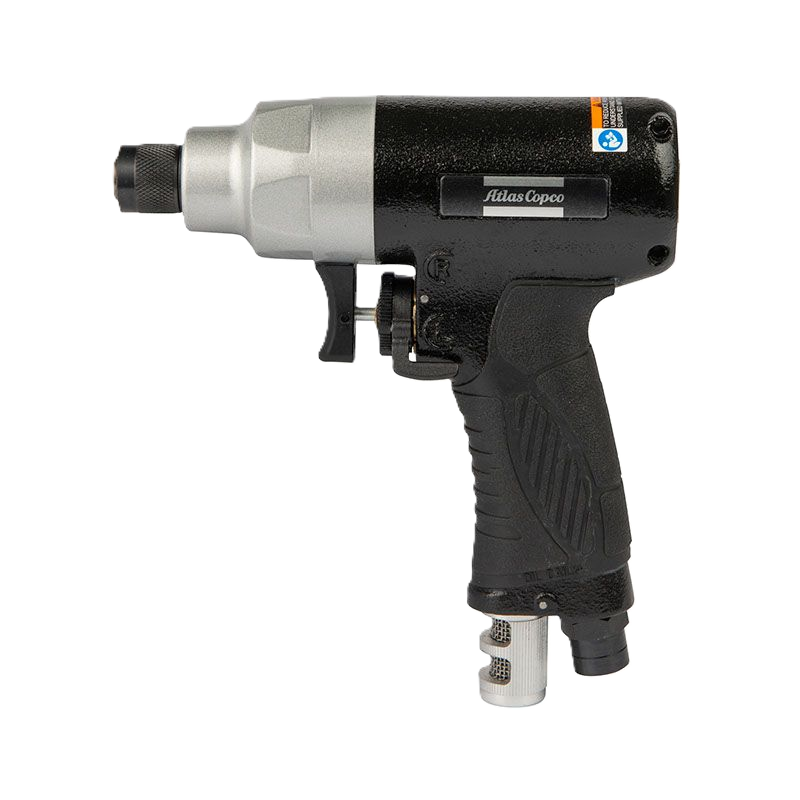

ATLAS COPCO Pneumatic Assembly Tools Ada
W2410
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator
Ringkasan
Kenapa W2410
These tools feature a lightweight composite housing that can handle though environments but at the same time being easy on the operator. The W29 is equipped with a powerful twin-hammer clutch suitable for the toughest jobs.
Katalog W2410PDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Category | Specification |
| Torque | |
| Max Torque | 81.1 ft-lb (110 Nm) |
| Torque Range | 9.6-59 ft-lb (13-80 Nm) |
| Speed | |
| Free Speed | 7,000 RPM |
| Air Specifications | |
| Air Consumption | 11.3 l/s (0.4 ft³/s) |
| Max Working Pressure | 100 psi (6.9 bar) |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Design & Functions | |
| Hex Drive | Yes |
| Professional Grade (PRO) | Yes |
| Clutch Type | Double Hammer |
| Noise & Vibrations | |
| Sound Power | 99 dB(A) |
| Sound Pressure | 88 dB(A) |
| Vibration Level | 7 m/s² (23 ft/s²) |
| Dimensions & Weight | |
| Air Inlet | 1/4" NPT |
| Bolt Size | 10 mm (0.39") |
| Length | 152 mm (5.98") |
| Quick Change Chuck | 1/4" hex |
| Recommended Hose | 10 mm (3/8") |
| Weight | 2.18 lb (0.99 kg) |
