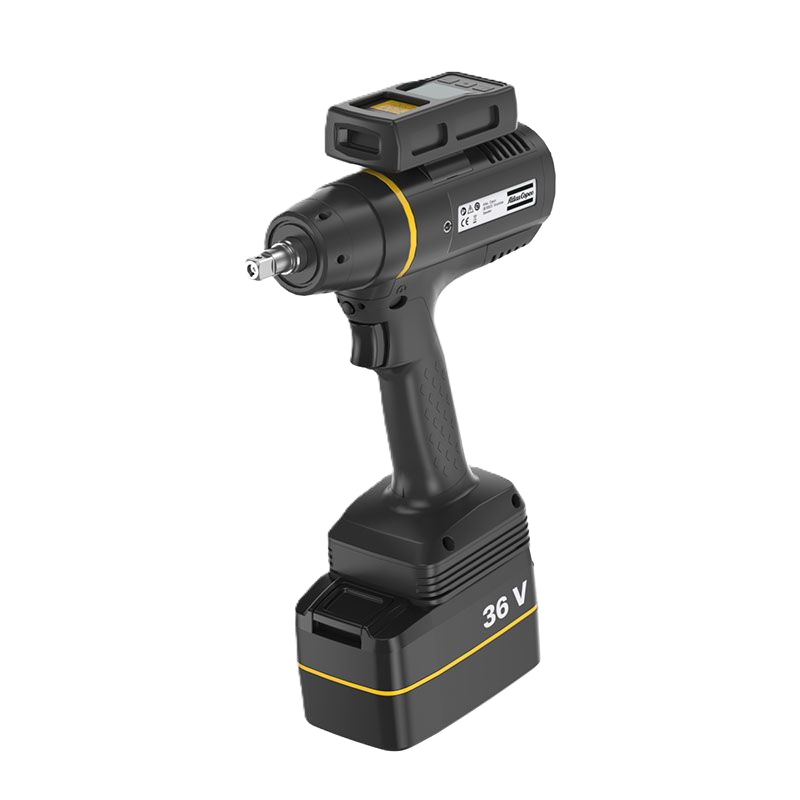

ATLAS COPCO Cordless Assembly Tools Ada
ETP TBP81-55-10-BD
The Pistol Cordless Pulse Tool TBP is a true game changer
Ringkasan
Kenapa ETP TBP81-55-10-BD
The Pistol Cordless Pulse Tool TBP is a true game changer. It's a battery powered, low reaction pulse tool with maximum flexibility and high torque. Thanks to the DuraPulse technology the tool uptime is increased and keeps it on the line, instead of in the tool crib. With TorqueBoost, active cooling, and advanced motor steering, the torque build-up is fast. High speed rundowns along with accurate measurements, make this the perfect tool to increase productivity. With the lowest vibration levels in the market, the TBP also reduces operator fatigue and injuries.
Country of origin is SE.
Katalog ETP TBP81-55-10-BDPDF resmi dari ATLAS COPCO
Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja
Spesifikasi Teknis
Specification
| Specification | Details |
| Motor power | 500 W |
| Motor voltage type | DC |
| Motor voltage | 18 V |
| Oil volume (full pulse unit) | 9.5 ml |
| CS distance | 29 mm |
| Height | 261 mm |
| Length | 200 mm |
| Output size | 3/8" |
| Weight | 3.7 lb |
| Speed range max | 6000 r/min |
| Speed range min | 1000 r/min |
| Communication type | Bluetooth / W-LAN |
| Light | Yes |
| Model type | Pistol |
| Output type | Square, Male |
| SCIP | ddc51461-eb20-4be9-a4e0-431362f5643b |
| Shut-off system | Transducer |
| Tool family | TBP |
| Sound power | 92 dB(A) |
| Sound pressure | 81 dB(A) |
| Sound standard | EN 62841-1, EN 62841-2-2 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO 28927-2 |
| Vibration value | < 2.5 m/s² |
| CMIIT ID | 2018AJ0237 |
| EAC certified | Yes |
| EU Legislation | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 - 62841-2-2 |
| EU SAR value | 0.26 W/kg |
| FCC ID | PVH0965 |
| IC ID | 5325A-0965 |
| KC certified | No |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| WEEE | 5 - Small equipment <50cm |
| Torque range max | 40.6 ft-lb |
| Torque range min | 14.8 ft-lb |
| Torque scatter 3s | ≤ 7.5% |
| Battery | Li-Io 18/36 V |
| Type of battery | 1 Li-ion |
| Weight incl. battery | 4.8 lb |
