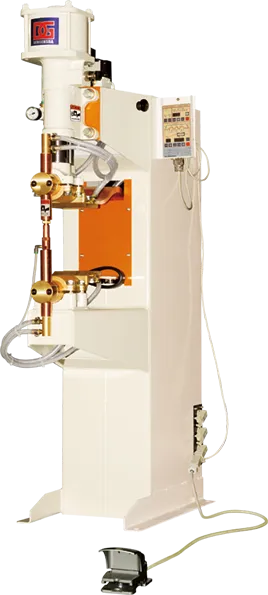

Single-Phase AC & Lower Arm Adjustable Type NDZ

The height of the lower arm can be adjusted in 4 stages according to the size and shape of workpiece or jig

Katalog

Ringkasan

Kenapa Single-Phase AC & Lower...

The height of the lower arm can be adjusted in 4 stages according to the size and shape of workpiece or jig.
Throat depth is 200 to 365mm

Specification

Model	Rated capacity (kVA)	Maximum short circuit current (A)	Maximum electrode force (kN)
NDZ-070-57K*	70	22	6
NDZ-070-51K*	70	22	10
NDZ-070-77K*	70	18	6
NDZ-100-51K*	100	30	10
NDZ-100-77K*	100	25	6
