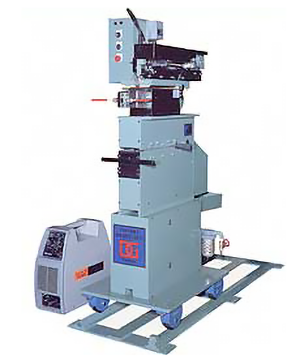

Portable shear welder
Easy and rational connection of hoop materialsFor connecting hoop materials such as pipe-forming lines, forming lines, press lines, etc.Slim structure is two-tiered, with...
Fitur
Easy and rational connection of hoop materials
For connecting hoop materials such as pipe-forming lines, forming lines, press lines, etc.
Slim structure is two-tiered, with shear station and welding staion and can be applied to existing lines
Models with casters can be used in multiple lines
Spesifikasi Teknis
Specification
| P-250SW | P-380SW | |
| Welding material thickness (mm) | 0.4 ~ 2.0 | 0.4 ~ 2.0 |
| Welding material plate width (mm) | MAX.250 | MAX.380 |
| Welding material tensile strength (Mpa) | MAX.490 | MAX.490 |
| For power source welding | 1φ.200V 18kVA | 1φ.200V 18kVA |
| For power source control | 1φ.100V 50VA | 1φ.100V 50VA |
| Shear drive | Pneumatic cylinder | Pneumatic cylinder |
| Clamping system | Manual toggle clamp | Manual toggle clamp |
| Outer dimensions (mm) | 550×950×1,870 | 550×1,400×1,870 |
